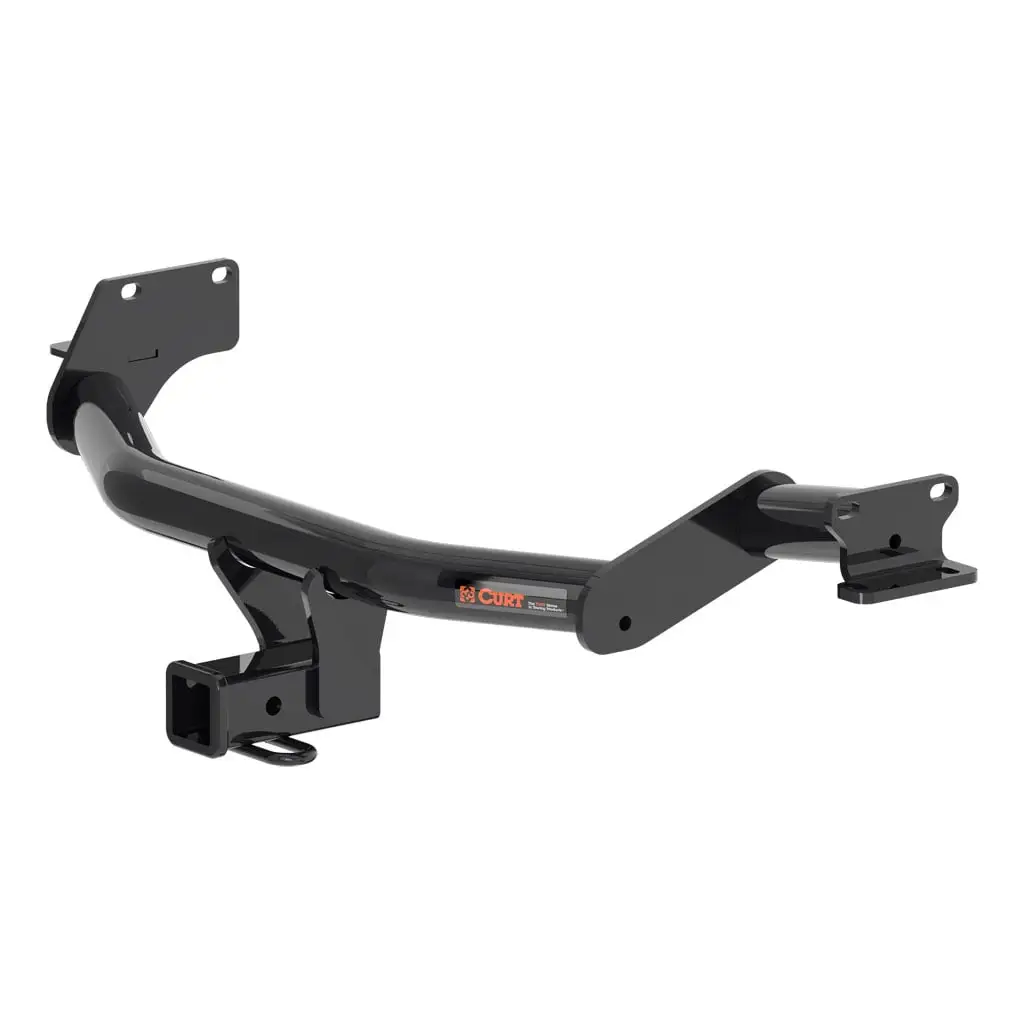

Hyundai Palisade (2020–2025) Hitch Installation
The Palisade hitch mounts at factory frame locations with no drilling. Installation includes lowering the spare tire, removing the driver-side underbody panel, supporting and lowering the rear exhaust, positioning the hitch above the exhaust, and torquing the supplied hardware. The exhaust, underbody panel, and spare tire are restored after clearance and fitment checks.
Wiring options by model year: 2020–2022 OEM-socket flat-4 wiring · 2023–2025 powered flat-4 wiring
Hitch Rating: 5,000 lbs gross trailer weight
Tongue Weight Rating: 750 lbs
Installation Time: Up to 1 hour
Ready to Get Your Vehicle Set Up?
Skip the shop. Skip the wait.
Get your vehicle ready for lake days, mountain weekends, and family adventures — with professional installation completed at your home.
1. Preparing the Rear Undercarriage
We begin by lowering the spare tire and removing the driver-side underbody panel to expose the factory mounting area. All clips and retainers are handled carefully and kept organized for proper reassembly.
2. Supporting and Lowering the Exhaust
The exhaust is supported before the rear rubber isolators are carefully released. This creates the working room needed for the receiver while protecting the exhaust system and surrounding components.
3. Raising and Aligning the Hitch
The receiver is maneuvered over the exhaust and aligned with the factory mounting locations. A controlled two-person lift helps protect the hitch finish and nearby vehicle components while the hardware is started cleanly.
4. Securing the Vehicle-Specific Hardware
The supplied M10 and M12 hardware is installed at the CURT-designated mounting points. Each fastener is tightened evenly, then torqued to the manufacturer’s specification with calibrated tools.
5. Reassembly and Final Inspection
The underbody panel, spare tire, and exhaust are restored to their proper positions. We finish by checking receiver alignment, exhaust clearance, hardware security, and the overall fit of every disturbed component.
