The necessary cargo panels are removed to reach the protected wiring area and the factory rubber grommet near the hitch. The harness output is routed through this pass-through to the exterior connector, with the opening sealed and protected against moisture and abrasion.

The powered, circuit-protected wiring module is mounted in a dry and secure location inside the rear cargo area. Its output is routed toward the hitch while remaining clear of exhaust heat, sharp edges, and moving components.

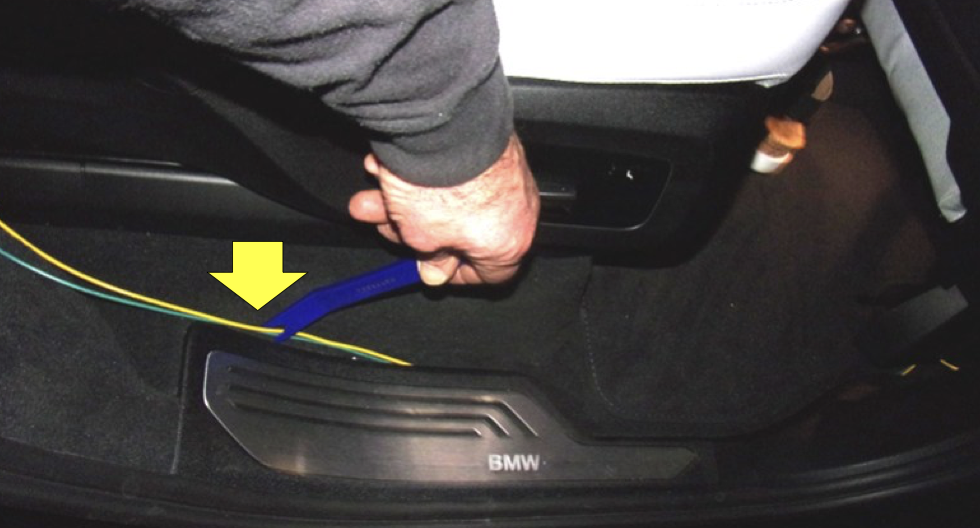

Signal wiring is routed discreetly beneath the interior trim. Connections for the turn signals are accessed near the passenger footwell and glovebox, while the brake and running-light circuits require access higher in the rear cabin trim. Each connection is made only after the correct factory circuit is verified.

A secure chassis ground and a fused battery-power connection supply the module independently of the X5’s lighting circuits. This lets the factory signal wires control the trailer lights without carrying the trailer’s full electrical load.

The trim is reinstalled after the wiring is secured and hidden throughout the cabin. The completed connector is tested for left and right turn signals, brake lights, running lights, power, and ground. Installing the wiring with the hitch avoids repeating much of the rear-bumper disassembly.
